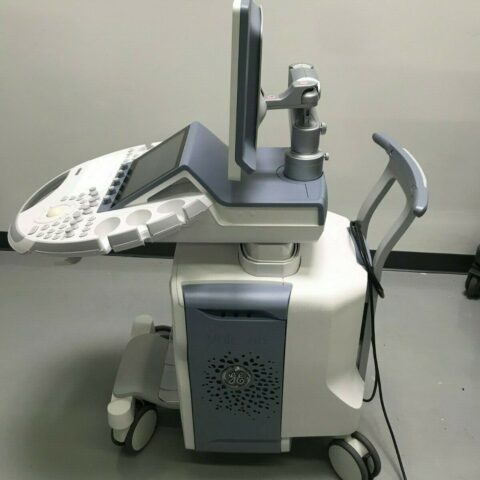

The GE Voluson E8 is a premium women’s health 4D ultrasound machine. GE’s breakthrough technology for the Voluson E8 was HDlive, a revision with high-resolution 4D imaging introduced in 2012 and a standard feature with the Voluson E8 BT12 and newer revisions. The Voluson E8 was considered GE’s top-of-the-line ultrasound system until the Voluson E10 was released in 2014. The Voluson E8 is also considered as one of the best-selling 4D ultrasound machines in the world even though it is in a higher price range than some of its competitors. The average price for a GE Voluson E8 is the Voluson E8 is designed for women’s health applications, including obstetrics, gynecology, and fertility. Secondary applications include general imaging, adult and pediatric cardiology, and neonatal cardiology. Physicians who are looking for shared service capabilities from a GE ultrasound, meanwhile, may consider the GE Logiq E9 instead. The Voluson E8 is furthermore considered a leading ultrasound for providing 4D imaging in a variety of clinical situations. It even offers a rare 4D linear probe and a 4D neonatal cardiac probe. Contact Ultrasound Supply, a Probo Medical company, for more information about Voluson E8 pricing and availability, or scroll below for more information about the Voluson E8’s specifications and features.
Overview
Application training for the GE Voluson E8 Ultrasound Machine
Our on-staff sonographer can provide onsite applications training or remote training via video conference for the GE Voluson E8 Ultrasound Machine at a set price plus travel costs.
GE Voluson E8 Ultrasound Machine Service Options
Free technical support is available from Ultrasound Supply during installation and over the course of the standard limited warranty. Technical support is available after the warranty period at an hourly cost per issue.
GE Voluson E8 Maintenance
We recommend using a surge protector along with a dedicated power outlet when operating the Voluson E8. Probes should be disinfected with a disinfectant wipe proven not to damage the lens after every use.
Dimensions and Weight of the Voluson E8
Height: 1393 mm (54.8 in) (adjustable, maximum)
Width: 580 mm (22.8 in)
Depth: 920 mm (36 in)
Weight: 131 kg (289 lb) (no Peripherals), approx 400 lbs with packaging
Voluson E8 Specifications
Digital Beamformer
1,979,578 System Processing Channel Technology
Displayed Imaging Depth: 0 – 30 cm
Minimum Depth of Field: 0 – 1 cm (Zoom, probe dependent)
Maximum Depth of Field: 0 – 36 cm (probe dependent)
Up to 274 dB Dynamic Range
GE Voluson E8 Electrical Power
Voltage: 100, 115-130, 220-240 VAC
Frequency: 50/60 Hz (+/-2%)
Power Max: 1000 VA with on-board Peripherals
Thermal Output: 3446 BTU/h
Applications
- OB/GYN
- Vascular
- Abdominal
- Small Parts
- MSK
- Urology
- Cardiology
- Neurology
- Orthopedic
- Pediatric
- Neonatal
Key Standard Features
- B, CFM, M, PW, PDI, 3D/4D
- Anatomical M-Mode
- 19 High-Resolution LCD Monitor
- Automatic Tissue Optimization (ATO)
- Coded Harmonic Imaging
- Coded Excitation
- HD-Flow
- CrossXBeamCRI
- Speckle Reduction Imaging (SRI II)
- Tissue Doppler Imaging (TDI)
- TruScan Architecture (TruAccess, SmartScan, ComfortScan)
- Internal DVD/CD-RW Drive
Optional Features
- 4D Real Time
- Vocal II
- 4D-STIC / STIC Oncology
- DICOM 3.0 Connectivity
- Volume Contrast Imaging (VCI)
- SonoVCADTM Heart
- B-Flow
- Topographic Ultrasound Imaging (TUI)
- Coded Contrast Imaging
- DICOM Modality Worklist / Structured
- Reporting
Transducers
- 4C-D Convex Array Transducer
- AB2-7-D Convex Array Transducer
- M6C Convex Array Transducer
- RAB2-5-D Volume Convex Array Transducer
- RAB4-8-D Volume Convex Array Transducer
- RNA5-9-D Volume Convex Array Transducer
- RRE6-10-D Volume Convex Array Transducer
- RIC5-9-D Volume Endocavity Convex Array Transducer
- IC5-9-D Endocavity Convex Array Transducer
- RIC6-12-D Volume Endocavity Convex Array Transducer
- SP10-16-D Linear Array Transducer
- 9L-D Linear Array Transducer
- 11L-D Linear Array Transducer
- RSP6-16-D Volume Linear Array Transducer
- RAM3-8 Volume Matrix Array Convex Array Transducer
- RSM5-14-D Volume Matrix Array Convex Array Transducer
- 3S-D Phased Array Transducer
- PA6-8-D Phased Array Transducer
- P2-D CW Doppler Pencil Transducer
- P6-D CW Doppler Pencil Transducer
