Asclepion QuadroStarPRO Yellow

The first yellow table-top laser for dermatology
Thanks to its special wavelength of 577 nm, the QuadroStar PRO YELLOW laser represents the gold standard for vascular treatments such as telangiectasia, couperosis, spider nevus, cherry angioma, venous lake, port wine stains or red spider veins. It allows fast, effective and safe treatments and reduces side effects. Less fluence is needed to achieve the expected results and, thanks to the lower melanin absorption (compared to 532 nm), it is also suitable for the treatment of darker skin types.

HOPSL: The latest solid-state laser technology
The QuadroStar PRO YELLOW features the HOPSL (high-power optically pumped semiconductor laser), the state of the art in solid-state laser technology. This brand new technology makes the yellow wavelength available in a very small and light device (less than 12 kg) with unmatched power (up to 5 Watt). Thanks to these special features, the device is highly reliable and has no running costs.

Homogeneous beam profile
The specially developed optics guarantee a very homogeneous beam profile, meaning that treatment is always safe and precise.

Scanner with skin cooling
In addition to the standard handpiece, the QuadroStar PRO YELLOW also offers a scanner with integrated skin cooling, for the treatment of larger areas.

New display
The clear and sharp display with touch-sensitive buttons and a user-friendly interface allows an intuitive and pleasant working environment for an optimum treatment procedure. The six treatment modes (Basic, Expert, Burst, Varix, CW, Scan) are optimized specifically for the applications.

Applications

Superficial vascular and benign, pigmented lesions
Telangiectasias, couperose skin, spider naevi
Eruptive angiomas, angiomas of the lip line
Small Haemangiomas, port-wine stains, spider veins
Warts, sebaceous gland hyperplasia, lentigines, Melasma

Includes

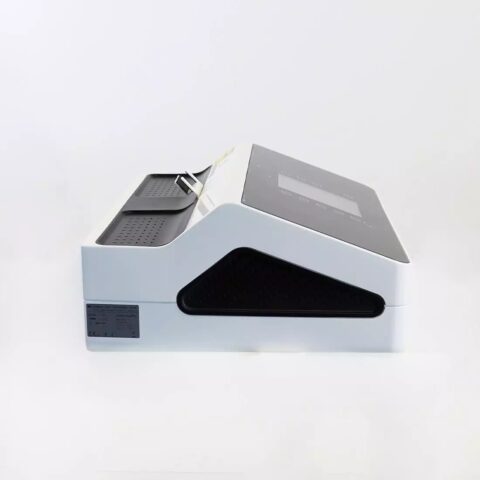

• Tabletop System
• Removable Fiber Guide Mast
• Key
• 110V – Power Cable
• Assorted Accessories (Pictured)

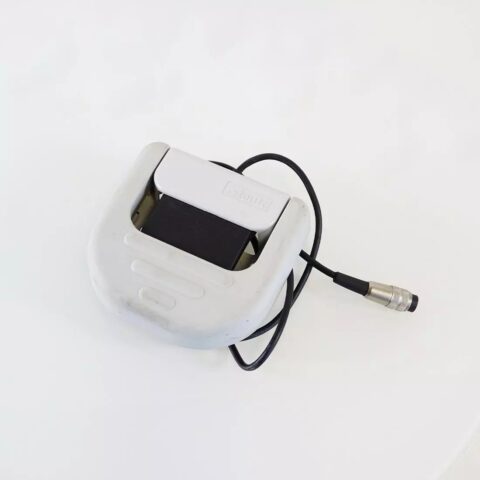

• Foot Switch

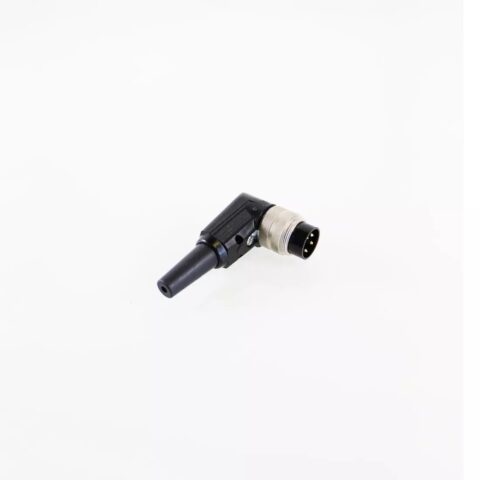

• Interlock

Specifications

Systems : QuadroStarPRO YELLOW
Laser : HOPSL 577nm* class 4
Power : Max. 5W
Pulse Duration : 1ms – 95s or CW
Frequency : 0.5Hz – 100Hz
Spot Size : HOPSL* | Standard 1mm Ø
Optional : 0.5; 1.5; 2.8mm Ø
Modes : Basic, Expert, Scan, Burst, Varix, CW
Scanner (Optional) : Spot Size: 1mm
Scan Area: Max. 15mm X 15mm
Scan Density: 100% / 80% / 60%
Display : 5.7″ touch-sensitive
Dimensions : 42cm x 38cm x 19cm (W x D x H)
Weight : <15kg
