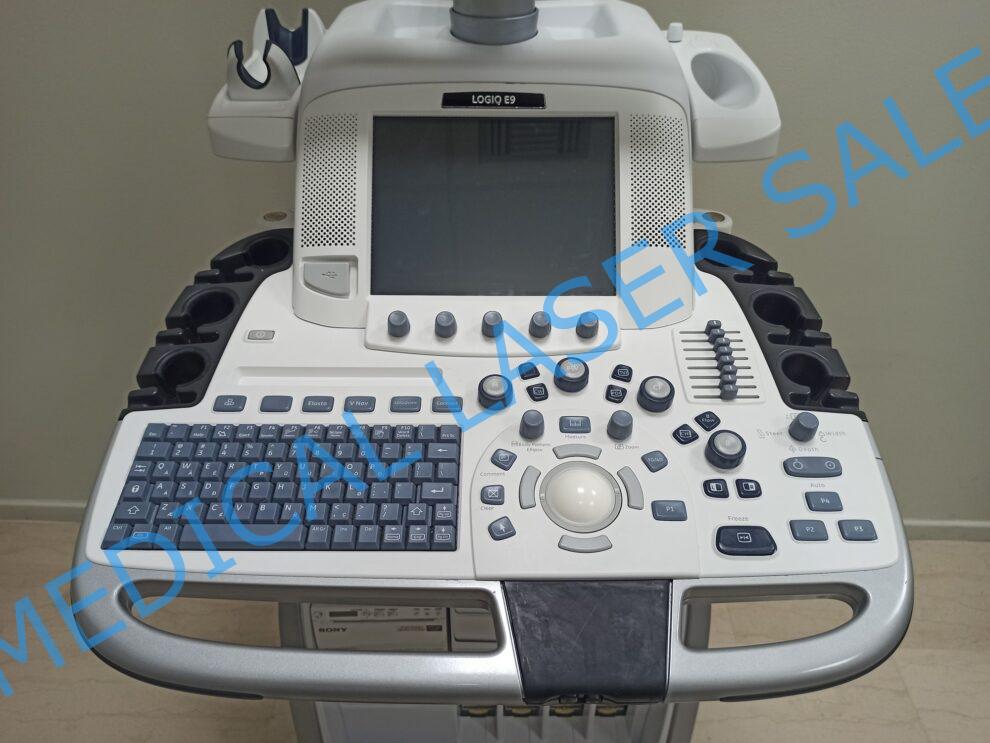

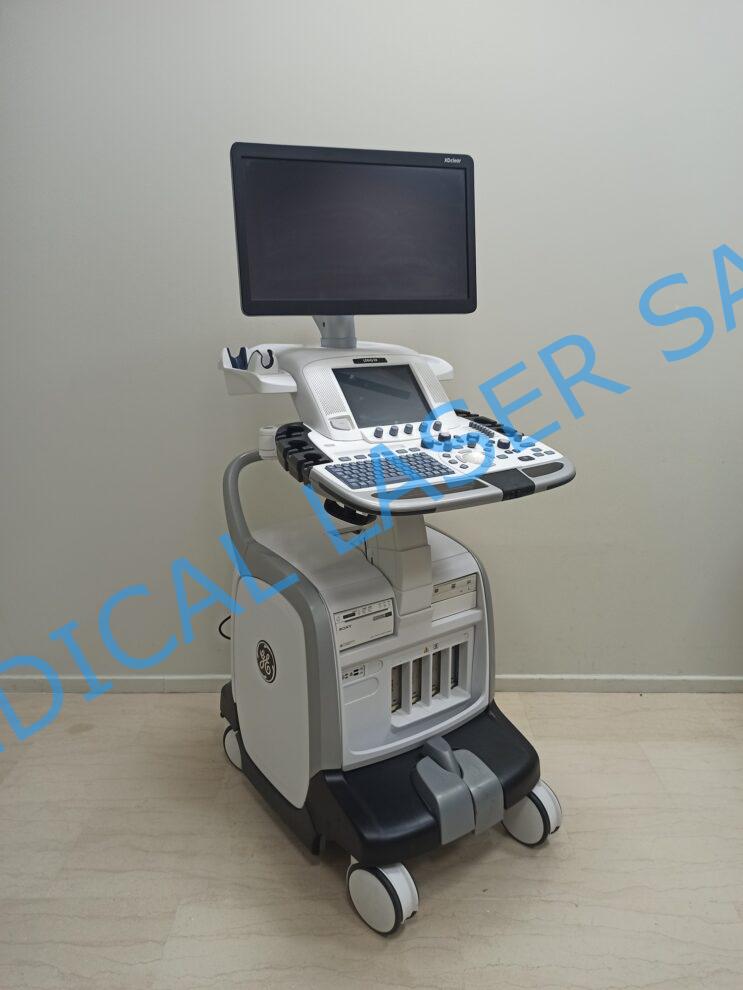

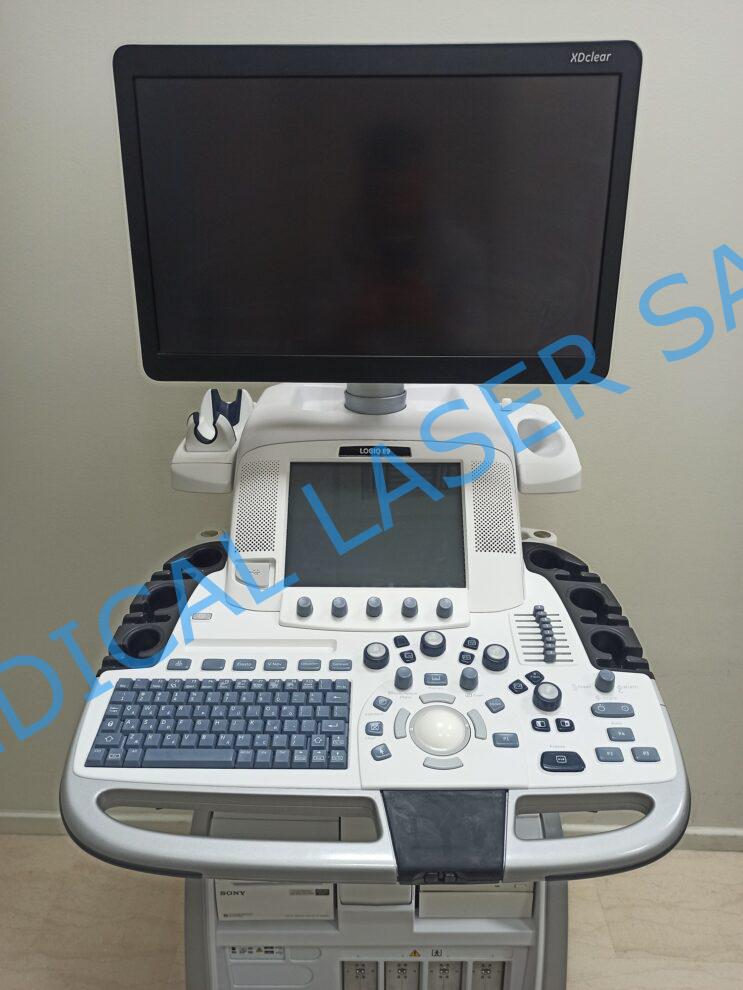

GE LOGIQ E9 XDclear 2.0 Ultrasound

$17,200.00

In stock

• Digital Beamformer
• Imaging Depth: 0-36cm [Minimum: 0-2 cm (Zoom); Maximum: 0-36 cm]
• Continuous Dynamic Receive Focus/Continuous Dynamic Receive Aperture
• Adjustable Dynamic Range
• Adjustable Field of View [FOV]

Buy it now
Brands:

The GE LOGIQ E9 XDclear 2.0 Ultrasound features excellent image quality, particularly with its single crystal XDclear transducers. These provide a step above traditional transducer technology, improving on spatial and temporal resolution. It can also serve as a shared service ultrasound with 4D obstetrics, allowing it to be a top performer and workhorse in nearly any environment. Users are most impressed with its resolution and penetration, allowing for better diagnosis in difficult-to-image patients. Shear Wave and Strain elastography are available as options and found on many systems. Two versions of monitors are available as well, with the 22″ OLED display carrying a higher resolution over its standard 19″ high resolution LED display. Its 10.4″ touchscreen display has an intuitive design and provides a good workflow.

Overview
GE LOGIQ E9 with XDclear 2.0 Dimensions and Weight:

• Height: 1300mm, 51 in.
• Width: 585mm, 23 in.
• Depth: 830mm, 33.5 in.
• Weight: 135 kg, 297 lb
GE LOGIQ E9 with XDclear 2.0 Specifications:

• Digital Beamformer
• Imaging Depth: 0-36cm [Minimum: 0-2 cm (Zoom); Maximum: 0-36 cm]
• Continuous Dynamic Receive Focus/Continuous Dynamic Receive Aperture
• Adjustable Dynamic Range
• Adjustable Field of View [FOV]
GE LOGIQ E9 with XDclear 2.0 Electrical power:

• Voltage:100 to 240 Vac
• Frequency: 50/60 Hz
• Power: Max. 1 KVA with on-board peripherals

Review
GE LOGIQ E9 with XDclear 2.0 Review:

This is the 2nd version of the GE Logiq E9 XDclear series, also called R6. The initial XDclear version was launched in 2014 with C1-6-D and C2-9-D transducers. The GE Logiq E9 XDclear 2.0 is a multi-purpose ultrasound system and GE positioned the Logiq E9 XDclear 2.0 as the GE General imaging flagship ultrasound product, GE tried to apply the best of her technologies and features. In this reason, another C3-10-D XDclear transducer is added to strengthen neonatal and pediatric applications. And also, the GE Logiq E9 gives a new option to choose one of 23″ wide screeen LED backlight monitor or 22″ wide screen OLED monitor, previously only a 19″ LCD monitor available. The OLED option could be a hightlight of image improvement for this version with better clarity, contrast, and resolution. In present, interventional procedure with ultrasound guidance is getting common. For better interventional procedure, more dedicated transducers are added at this options such asC2-6b-D, C2-7-D, and L3-9i-D(T type intraoperative probe). Because the GE Logiq E9 is a multi-purpose system including for shared service, Two GE’s cardiac automation technologies – Auto Ejection Fraction (Auto EF) and Cardiac Automatic Function Imaging (Cardiac AFI) – must be highlighted as a major upgrade. However, M5Sc has missed, but we can estimate next time for better fundamental cardiac image quality. For all premium options with the GE Logiq E9 XDclear 2.0 would be nice, but limited number of hospitals or medical centers can afford this due to the high price point. The 1st release of the XDclear version is the R5 version of the GE Logiq 9. Depending on the purpose of buying a system, its XDclear options, interventional options, cardiac options, and Shear wave option, etc can satisfy the need of labs or hospitals with a more affordable price. This logic applies the same to the lower versions of GE Logiq E9 down to R4 and R3.

Probes
GE LOGIQ E9 with XDclear 2.0 Probes/Transducers:

XDclear Convex Probes
C1-6-D [1-6MHz]
C1-6VN-D
C2-9-D [2-9MHz]
C2-9VN-D
C3-10-D [2-11MHz]

Convex Probe
M6C-D
C1-5-D [1-6MHz]
C2-6b-D [2-6MHz]
C2-7-D
C2-7VN-D

Intra-Cavitary Probe
IC5-9-D [3-10MHz]

Micro-Convex Probe
C2-7-D [1-6MHz]
C2-7VN-D
3CRF-D
3CRF

Linear Probe
9L-D [2-8MHz]
11L-D [3-11MHz]
ML6-15-D [4-15MHz]
L8-18i-D [4-15MHz]
L3-9i-D [2-19MHz]

Sector
S1-5-D [1-6MHz]
S1-5
M5S-D [1-5MHz]
6S-D [2-8MHz]
S4-10-D [3-9MHz]
S4-10

Real-time 4D
RAB6-D [2-8MHz]
RAB2-5-D
RAB4-8-D
RNA5-9-D
RIC5-90D[3-10MHz]
RSP6-16-D [6-18MHz]

Speciality
6Tc-RS [2-8MHz]
P2D [2MHz]
P6D [6.3MHz]
