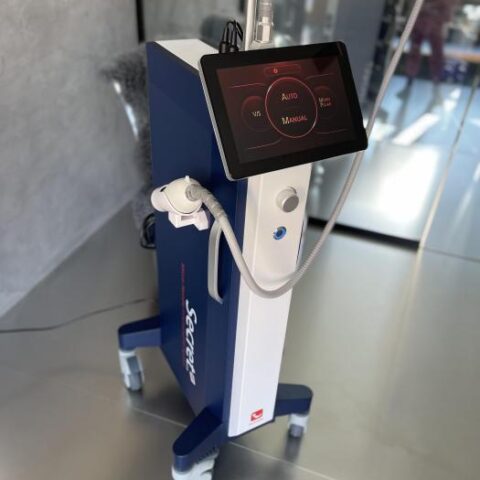

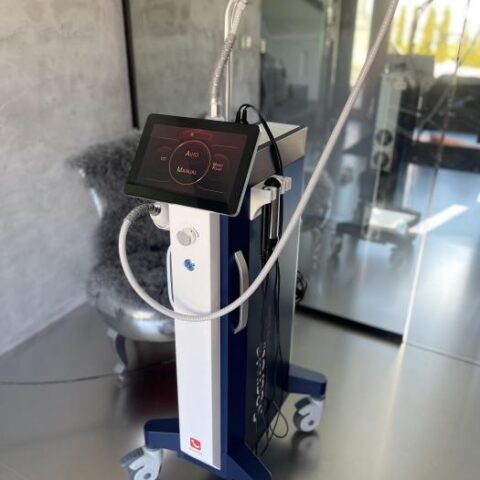

2020 CUTERA SECRET RF 2.0 MICRONEEDLING RADIO FREQUENCY WITH DUAL HANDPIECES
SECRET RF PRODUCT SPECIFICATIONS
Power: 20 W ± 20%
RF frequency: 2 Mh ± 20%
Intensity: 0 ~ 100 Level (10 levels)
Repeat: 0.2 / 0.5 / 1/2 sec / individually.
Needle Size: 0.3 mm
Info about needles: 25 electric needles (5 x 5, 7.8 mm x 7.8 mm / height: 1.95 mm (standard) and
16 electric needles (4 x 4, 7.8 mm x 7.8 mm / height 2.6 mm (optional)
Treatment range: 1 x 1cm
Adjustable Depth: 0.5 ~5 mm (0.1 steps)
Treatment duration: 50 ms ~ 950 ms
Electrical power: 100 ~ 240 VAC, 50/60 Hz, 220 VA
Monopolar RF
Power: 520 W ± 20%
RF frequency: 2 Mh ± 20%
RF electrode: monopolar
Repeat: CW
RF electrode size: 15
SECRET RF is a fractional micro-needling system (fractional radiofrequency) that exceeds the capabilities and limitations of fractional laser significantly. It is a system for extensive skin structure improvement and treatment of hyperhidrosis (radio frequency thermotherapy RFTT), based on both monopolar and fractionated on, bipolar radio frequency. An exact adjustment of the depth of the microneedles and the cold passing the epidermis allow the energy output directly into the target layer.
The needle depth is 0.5 mm to 3.5 mm can be varied, thereby opening up a wide range of treatments. The adjustable intensity of the RF energy allows for the treatment of various areas of the body with different energy performance.
The ability to work specifically in the deep dermis, without damaging the epidermis, is regulated in the RF Secret by the delay time of fractional radiofrequency. The needles are inserted at a rate of milliseconds equal to a stamping process in the skin and also withdrawn immediately. Only after the needles are penetrated into the desired skin layer, is carried out for a few milliseconds, a radio frequency pulse to set heat damage. While the penetration into the skin, the needles remain always cold. In order to achieve a deep and superficial effect, the needle depths can be varied individually in the respective treatment passes.
2020 CUTERA SECRET RF 2.0 MICRONEEDLING RADIO FREQUENCY WITH DUAL HANDPIECES
SECRET RF APPLICATIONS
Facials
Non-surgical facelift
Skin tightening
Pore reduction
Wrinkle reduction
Skin Rejuvenation (illumination)
Acne scars
Body treatments
Scar Correction
Keratosis pilaris (Keratosis pilaris)
Stretch marks
Dermal Remodeling from the Inside Out
Demand for non-surgical aesthetic procedures with little to no downtime is on the rise. More than 70% of patients are bothered by signs of aging such as fine lines and wrinkles as well as skin texture and discoloration.1
Secret RF is a novel fractional radio frequency (RF) micro-needling system for tissue coagulation and hemostasis designed to stimulate and remodel collagen and address the common signs of aging. It is ideally suited for use on patients who wish to revitalize and refresh the appearance of their skin on all skin types. By adjusting the micro-needles, Secret RF can deliver energy at various depths, so that treatments can be tailored to address each patients individual concerns such as fine lines, wrinkles, acne scars, photoaging and striae at the depth required.
Secret RF System
Secret RFs unique technology and customized delivery of energy enables providers to tailor treatments for a variety of skin concerns on all skin types.
Customized Dermal Remodeling
Secret RF induces dermal remodeling by applying precisely controlled RF energy directly into various depths of skin from 0.5-3.5 mm – with minimally invasive micro-needles to spare the epidermis and reduce patient downtime.
Adjustable Needle Depth
Secret RF micro-needling features adjustable needle penetration ranging from 0.5-3.5 mm offering customized dermal remodeling based on the area and the depth of the condition being treated.
Selectable Needle Type
The Secret RF micro-needling device provides a unique combination of non-insulated or semi-insulated needles that let you treat a wide range of applications for all skin types, including challenging skin.
Secret RF Handpieces
Secret RF features dual handpieces and two sizes of treatment tips 25 and 64 pin for fast treatments on the face and body. This allows you to treat patients quickly and efficiently in under 20 minutes.
64-pin Handpiece (Optional Handpiece Not Included with Unit)
Secret RFs 64-pin handpiece covers the largest treatment area on the market for faster, more efficient treatments. Ideal for treatments on the face, neck, chest, and body, the 64-pin handpiece features semi-insulated needles for precise placement of energy.
Secret RFs 25-pin handpiece is ideal for treatments on the face or smaller, more delicate areas and can be used with non-insulated and semi-insulated needle tips for full treatment customization.
